Why is earthing necessary in electrical installations?

Earthing is vital for the safety of electrical installations.

Electricity flows along specific paths, but can sometimes deviate from these paths due to a fault or a short circuit. In such cases, the current may pass through unexpected materials, such as the human body. For the purposes of our Comparison of TN-S, it is important to understand what risks may arise.

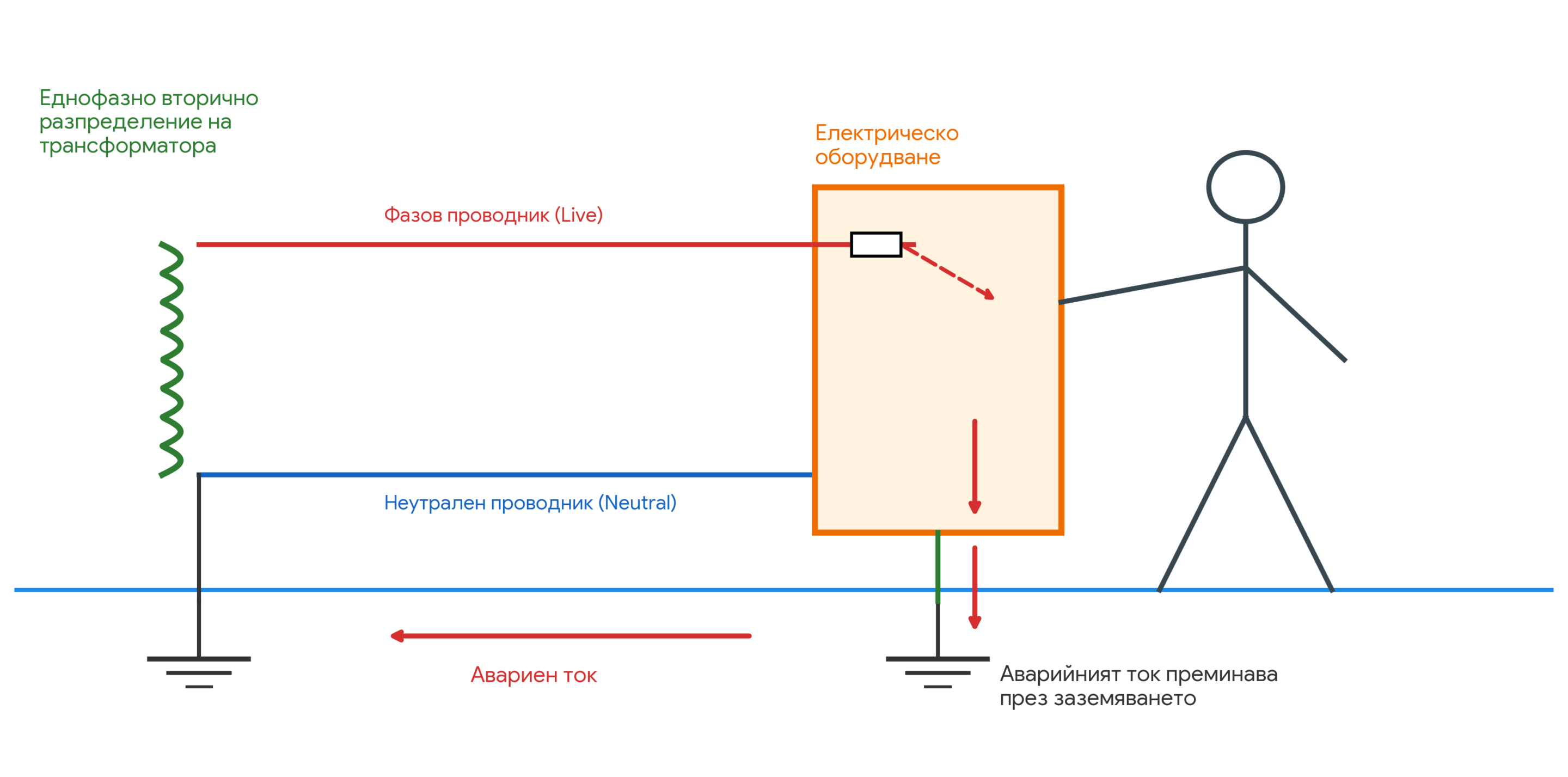

Earthing provides an alternative path for the current in the event of a fault, directing it to earth and preventing potentially fatal electric shocks. Many modern electronic devices generate a form of ‘electrical noise’ which can damage the device and reduce its efficiency unless it is earthed. Surge protectors work best

with proper earthing.

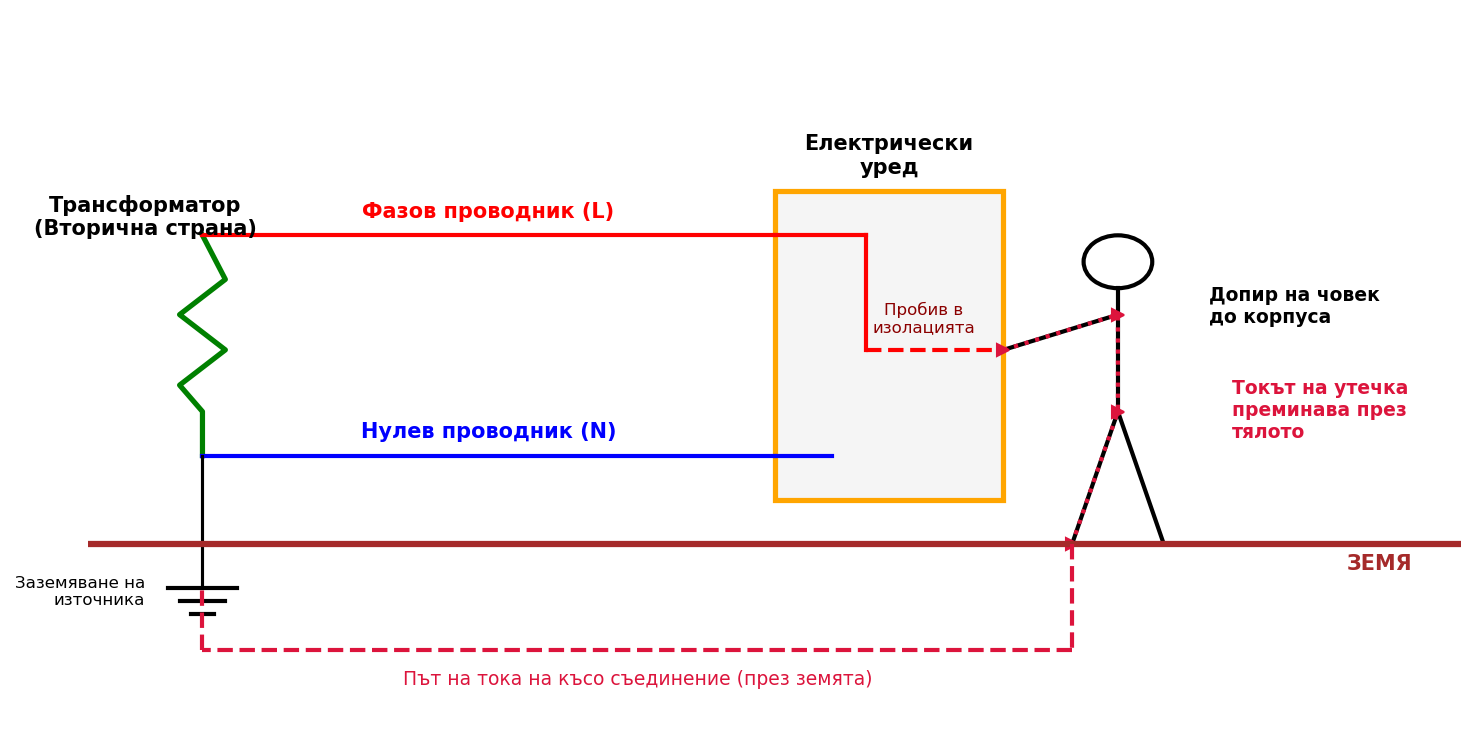

• Damaged insulation: If the insulation on an electrical cable is damaged, current may flow through the metal part of the cable or the appliance. The earth wire provides a safe path for the current to flow to earth, preventing electric shock.
• Short circuit: A short circuit occurs when two different conductors come into contact, creating an unwanted flow of current. Earthing can interrupt this flow and prevent overheating or a fire.

Classification of earthing systems

A low-voltage distribution system (LV) can be identified by

its earthing system. These are identified by the following five letters:

T (direct earth connection), N (neutral), C (combined), S (separate) and

I (insulated from earth).

The first letter indicates how the neutral is earthed on

the transformer (the power supply), whilst the second letter indicates how it is earthed

the metal structure of the installation (the chassis). The third and fourth letters

are, respectively, the functions of the neutral conductors and the protective devices.

Earthing is essential for the safety of electrical installations. It provides a safe path for current in the event of a fault, preventing potential electric shocks.

In this article, we will examine the four most common earthing systems – TN-S, TN-C, TT and TN-C-S – comparing their characteristics, advantages and disadvantages.

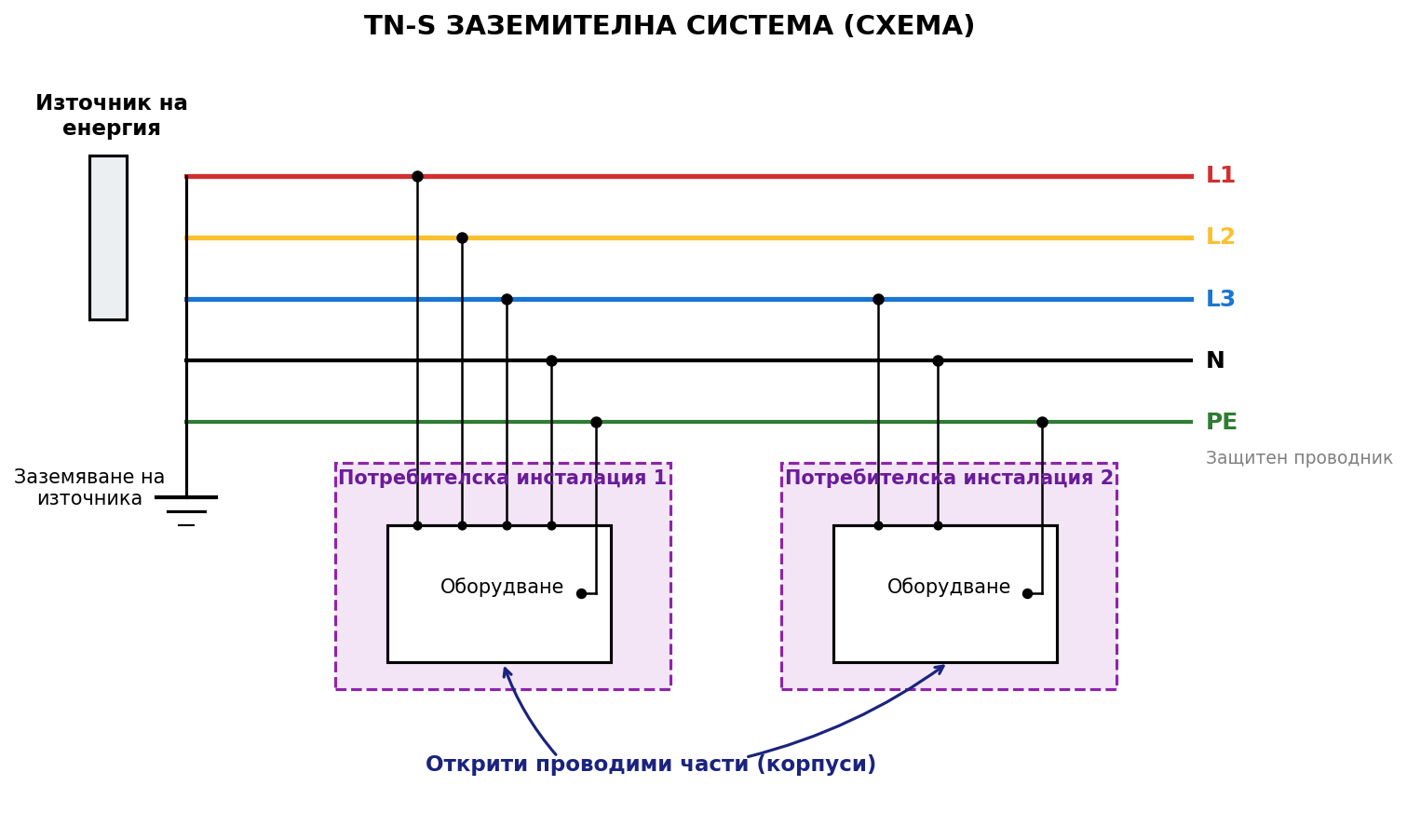

TN-S (Separat Neutral):

• Description: In a TN-S system, the neutral conductor is separated from earth at the point of supply and remains separate throughout the entire installation.
• Advantages: The safest system, as there is no risk of electric shock even if the neutral wire is faulty.
• Disadvantages: It is more expensive to implement and requires a more complex installation.

TN-C (Combined Neutral):

• Description: The neutral conductor is combined with the earth conductor up to the distribution point, after which they are separated into individual conductors.
• Advantages: Cheaper to implement than TN-S.
• Disadvantages: There is a higher risk of electric shock, as the neutral conductor is earthed only at the distribution point.

TT (Terrestrial):

• Description: All appliances are earthed directly to earth via separate earthing conductors. The neutral conductor is not connected to earth.
• Advantages: Inexpensive to implement.
• Disadvantages: Lowest level of safety, as there is no protection against electric shocks in the event of a fault in the mains supply.

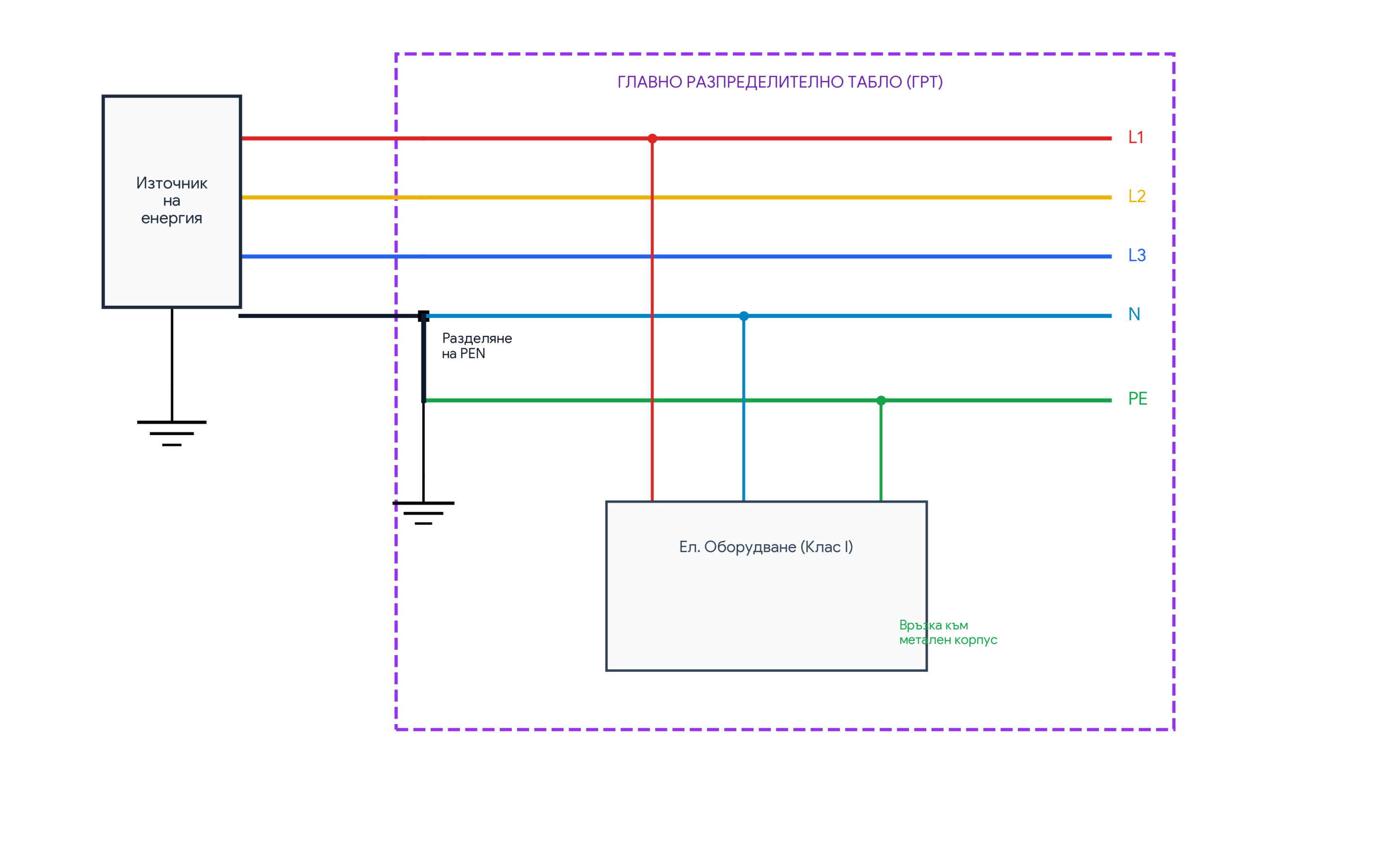

TN-C-S (Combined Neutral with Separate Earth):

• Description: It combines elements of TN-C and TN-S systems. The neutral conductor is combined with the earth conductor up to the distribution point, after which they split into separate conductors.
• Advantages: Better safety than TT and TN-C, cheaper than TN-S.
• Disadvantages: Less reliable than TN-S.

Conclusion:

The choice of the most suitable earthing system depends on the specific characteristics of the installation, its intended use and local safety standards.

TN-S is the safest system, but it can be more expensive. TN-C-S offers a good balance between cost and safety, whilst TT is the cheapest but offers the lowest level of safety.

IT El Connectivity: Advantages, Disadvantages and Analysis

IT power supply is an increasingly important part of modern information systems. It involves connecting IT equipment, such as servers, network devices and computers, to the electricity supply system.

Advantages:

• More efficient energy management: IT energy monitoring enables real-time monitoring and control of electricity consumption by IT equipment. This leads to optimised consumption, reduced costs and lower emissions.
• Greater reliability: IT power distribution can be integrated with emergency power supply systems, ensuring the continuity of IT systems even in the event of power cuts.
• Improved security: Monitoring the energy flow can help to detect unauthorised access and other potential threats to IT systems.

Disadvantages:

• High investment costs: Installing an IT network requires specialised equipment and expertise, which can be expensive.
• Installation complexity: IT connectivity requires integration with various systems and components, which can be complex and time-consuming.
• Potential security risks: IT systems that are incorrectly configured or inadequately secured may be vulnerable to cyber-attacks.

IT connectivity is an increasingly important technology that can bring significant benefits to organisations.

Despite the high capital expenditure and the complexity of the installation, the benefits of optimising energy consumption and improving reliability and security make IT power distribution an attractive option for modern IT systems.

It is important to prioritise security when designing and implementing IT connectivity, using best practices and security measures.

Comparison table:

SYSTEM	DESCRIPTION	ADVANTAGES	SHORTCOMINGS
TN-S (Separat Neutral)	The neutral conductor is isolated from earth at the point of supply.	The safest system, as the neutral conductor is isolated from earth throughout the entire installation.	It is more expensive to implement and requires a more complex installation.
TN-C (Combined Neutral)	The neutral conductor is combined with the earth conductor up to the distribution point.	Cheaper to implement than TN-S.	There is a higher risk of electric shock, as the neutral conductor is earthed only at the distribution point.
TT (Terrestrial)	All appliances are earthed directly to earth via separate earthing conductors. The neutral conductor is not connected to earth.	Inexpensive to implement.	Lowest level of safety, as there is no protection against electric shocks in the event of a fault in the mains supply.
TN-C-S (Combined Neutral with Separate Earth)	It combines elements of TN-C and TN-S systems. The neutral conductor is combined with the earth conductor up to the distribution point, after which they split into separate conductors.	Better safety than TT and TN-C, cheaper than TN-S.	Less reliable than TN-S.
